Diesel GT2052V Complete Turbo ,454135-0001 AUDI Turbo OEM 059145701K

Name: Diesel GT2052V Complete Turbo 4541350001 AUDI Turbo OEM 059145701K
Brand: Tain turbo
Price: 1 USD

Quality Diesel GT2052V Complete Turbo ,454135-0001 AUDI Turbo OEM 059145701K wholesale

Brand Name : Tain turbo

Model Number : GT2052V

Certification : ISO 9001-2000

Place of Origin : China

MOQ : 2PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/month

Packaging Details : Neutral Packing

Model : GT2052V

Application 1 : Audi A4 / A6 / A8

Application 2 : Skoda Superb

Application 3 : VOLKSWAGEN Passat

Power : 110KW

PN : 454135-0009

OEM : 059145701K/F/S

Fuel Type : Diesel

Contact Now

AUDI A4 A6 Complete Turbocharger GT2052V 454135-0001 434766-000 059145701K

DESCRIPTION

—— Model:GT2052V

—— Turbo No.:454135-0001 454135-0002 454135-0006 454135-0011

—— OE No.: 059145701K 059145702D 059145702G

—— Capacity: 2496ccm

—— Condition: Brand new

—— Fitted Cars : SKODA Superb Tdi - 2001

AUDI A4 / A6 / A8 TDI - 2002

VOLKSWAGEN Passat - 2000

—— APPLICATION

Turbo No.	Application	Power	OEM	Engine Code
454135-0001	SKODA Superb Tdi	2.5LD 132HP	059145701K	V6
	AUDI A4	2.5LD 150HP	059145702D	V6
	AUDI A6	2.5LD 180HP	059145701K	V6
	AUDI A8	2.5LD 180HP	059145701K	V6
	VOLKSWAGEN Passat	2.5LD 150HP	059145702G	V6

SPEAR PARTS BOM

Compressor Wheels	Turbine Wheels	Chra No.
436131-0002	434883-0001	434766-0001
Beraing Housing	Back Plate	Heat Sheild
434765-0001	701335-0003	443768-0003
Turbine Housing	Actuator	Nozzing ring
434762-0001	434855-0001
Cartridge Calibration Date
140000 RPM<0.5G unblance weight<50mg.mm

DIMENSION

Compressor Wheels 436131-0002

blade	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
6/6	38.6	52	5	26	5.08

Shaft&Wheels 434883-0001

Diesel GT2052V Complete Turbo ,454135-0001 AUDI Turbo OEM 059145701K

blade	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
9	47	38.6	7.9	7.88	5.08

Spear Parts Material

Turbine wheel	K418
Turbine shaft	42CrMo
Compressor wheel	C355(Aluminum casting)
Bearing house	HT250(Gary iron)
Journal bearing	CW713R
Thrust bearing	Brass bar
Thrust collar & spacer	42CrMo

OTHER MODELS WE SUPPLY

Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26

TIAN TECHNICIAL TEAM

Our technical team was composed by one advanced engineer with 15 years experience engineers and

four engineers who are very professional in this field. They are familiar with turbocharger system and

product structure and dimension.

They are mainly responsible for source selection,quality control,dimension inspection and product

development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our

products quality in a high level.

Diesel GT2052V Complete Turbo ,454135-0001 AUDI Turbo OEM 059145701K

Product Tags:

k03 turbo

holset turbo

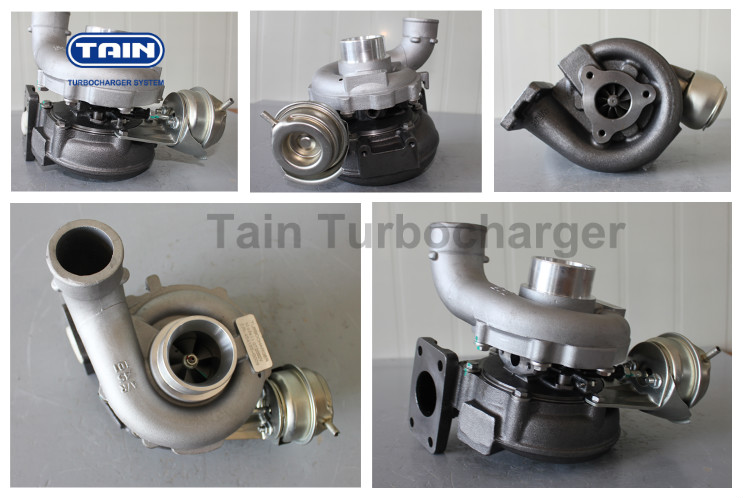

Diesel GT2052V Complete Turbo ,454135-0001 AUDI Turbo OEM 059145701K Images
